MODIFYING A CADDY AND CRADLE FOR A HARD DRIVE

Author:  Mike Boesen

Last updated: 13 November 2005

1.  Background

Some caddies are available for hard drives with serial interfaces.  However, most caddies are for hard drives with parallel interfaces. This article assumes that if you get a caddy it will be for a hard drive with a parallel interface.

Power is supplied to the back end of the cradle inside the PC's case, and the cradle is connected to the parallel IDE/ATA interface of the PC.  When the caddy is fully inserted, a Centronics-style socket on the outside rear of the caddy mates with a Centronics-style plug on the inside rear of the cradle.  This mating pair provides a 5v (red) and 12 V (yellow) power line and a pair of ground lines (black) to the hard drive plus 39 IDE/ATA interface lines.  If your PC's motherboard has a parallel UATA (Ultra ATA) interface, the cable from the motherboard to the rear of the cradle will be a flat 80-wire cable going to a 39-pin socket (looks like a 40-pin socket but one pin is absent).  If it is not UATA, it will have either a flat 80-wire cable OR a 40-wire cable going to the 39-pin socket.  (An 80-wire cable will work fine with a non-Ultra ATA interface because all the extra 40 wires in the 80-wire cable are simply ground wires designed to eliminate "cross-talk" between the data wires.)

I have been using such caddies for about 8 months and have found that  the system is very effective in the context of creating clones or compressed images of my master drive, for these reasons:

• The speed of data transfer is as fast as data transfer from one internal drive to another internal drive (about twice the speed of data transfer for the same type of drive in a USB 2.0 "High Speed" rated external enclosure).
• The caddy can be removed and stored in a secure location or off-site.
• The drive in a removed caddy is totally isolated from the PC and hence can not be corrupted by malware.
• The caddy can be inserted if required into another PC if it has a matching cradle.
• The cradle and caddy comes as an inexpensive set: about $25 (AUS) for the set.

If you decide to implement a cradle and caddy arrangement, there are three matters that require some thought:

• Effectiveness of the air flow through the caddy to ensure that the hard drive does not overheat.
• Noise associated with the fan in the cradle.
• Improving the mating of the caddy and the cradle.

2.  Effectiveness of air flow through the caddy

To ensure that there is a cooling airflow over the hard drive inside a caddy, it or the cradle should have at least one fan.  This is particularly important for modern, fast (7,200 rpm) drives because they get very warm in enclosed spaces.

Such fans have to be small - about 40 mm diameter and small fans have a low air shifting ability.  Therefore some caddy setups have three such small fans - two in the cradle and one in the caddy.  I don't like those at all because of the noise.  In any event, I think that one fan in the cradle is quite sufficient, providing that:

• The PC case has an adequate hot air exhaust system.  Ideally this should be accomplished through a good exhaust case fan as a supplement to the fan in the power supply unit. PCs that have a lot of heat-producing components may also require a good intake case fan which sucks air into the PC's innards.


• The structure of the cradle and caddy is such that air is forced to flow from the outside the front of the PC case, into the front of the caddy, across the drive and out the back of the cradle into the PCs case's innards.  Some caddy units are not designed properly to ensure that happens. In one version I have seen, there are large air gaps between the caddy and the back of the cradle, so that all the fan was doing is circulating air around the fan and not drawing air across the hard drive.

I have found that "Laser" brand caddies are very well designed in terms of maximizing the effectiveness of airflow. When fully inserted, the cradle butts up flush against the back of the cradle, and the air can only be sucked in through the front of the caddy, across the drive and then out the rear of the cradle.

So I suggest that if you buy a caddy/cradle setup you should have a good look at its design from this point of view.

3.  Caddy fan noise and how to reduce it

Because the fan/s in a caddy have to be small - no greater than 40 mm in  diameter - it/they add to the PC's noise emissions somewhat, especially if the PC is on the desk close to your ear.  So the fewer the fans, the quieter is the PC.

The Laser brand caddy setup has one 40 mm fan mounted in the back of the cradle.  I monitor the temperature of my drives using a nice little freeware utility called HD Health.  I have found that the single fan Laser rig keeps the temperature of my 7,200 rpm 250 Gb drive mounted in the caddy at about the same as that of the 120 Gb 7,200 rpm drive mounted inside the PC case.  This is the reason for my view that providing that the design of a caddy and cradle is effective in terms of air flow, one fan is quite sufficient.

In all the caddy/cradle types I have seen (including the Laser brand), the fan (or fans) are running all the time, irrespective of whether or not the caddy is inserted.  This is doubly annoying, because (a)  if there is no caddy inserted, there is no need for the fan to be running at all and adding noise, and (b) there is unnecessary wear on the fan, and that will shorten its service life.

To avoid unnecessary noise and wear, I have mounted a microswitch in my Laser cradles.  This switch acts in a way that if there is a caddy fully inserted, the switch is closed and current is supplied to the fan.  When the caddy is extracted more than about 5 mm the switch is off and no current goes to the fan.  Hence, the only time there is any fan noise at all is when the caddy is pushed in all the way.  The switch I used is is a sub-miniature microswitch (Jaycar SM1036 costing $3.30.  Go to Jaycar and search for microswitch).

In an earlier version of this article, I described a way of installing the microswitch that involved cutting one of the power wires between the fan plug and the fan.  Since then I have developed two alternative and better ways of installing the microswitch referred to in that article.  These alternatives mean that there is no need to cut one of the power wires between the fan plug and the fan.  The merit of this approach is that if the fan ever needs to be replaced, you can simply unplug the old fan, unscrew it, throw it away, screw in the new fan, and plug it in.

3.1  First alternative

The photos below show how the first alternative is implemented.

• Solder a 150 to 200 mm length of insulated wire onto the middle lug on the microswitch.


• Solder another 150 to 200 mm length of insulated wire onto the lug on the micro switch that is closest to the pivot point for the flat switch lever (at the end of the body that does NOT have the switch lever overhanging it).

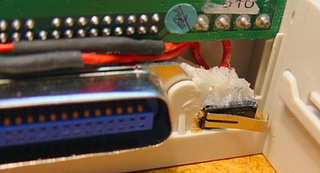

• Using a suitable adhesive, mount the microswitch at the rear of the cradle near the end of the circuit board that has the four pin power connectors.  The switch must be mounted so that the switch's lever will be in the closed position (i.e. the lever is flattened onto or almost onto the body of the switch) when the caddy is fully inserted.  This means that the switch will be open (off) when the caddy is withdrawn about 3 to 5 mm.  Before I mounted the switch, I bent the end of the flat switch lever down so that it would not foul the side of the caddy.  I have explained my adhesive approach in Appendix 1.

• Note that due to my own stupidity, I had to extend the two red wires from the microswitch because they were too short.  Duh!  So while there are two red wires leaving the microswitch, I joined them to a red wire and a black wire, and that explains the black heat shrink you can see in the picture, and why the two red wires become a red and a black wire when they are soldered to the circuit board (see later).


• Bring the two wires around close to the metal shroud of the blue plug so that they can be soldered to the track on the circuit board that is shown here running at a 45 degree angle on the circuit board at the right hand side in this picture:

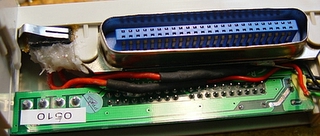

• The track in question is a track that is connected to one of the pins of the fan's power socket.  Scape off the green insulating lacquer till you get to the copper of the track, and then cut the track as shown below:

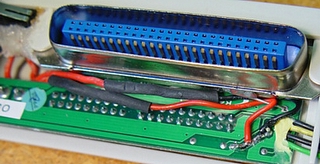

• Solder one of the microswitch wires to one side of the cut track and solder the other microswitch wire to the other side of the cut track.  It does not matter which wire goes to which side of the cut track.  The result is shown below:

• That's all there is to it.  With this arrangement, the power to the fan is interrupted when the microswitch is off because in effect the track that provides 12 V to the fan is not bridged.  When the microswitch is closed, in effect the track then is bridged, so the fan will get its power.

3.2  Second (and better) alternative

Having done one caddy that way, I took a smart pill and realized that there was an even better way to do things:

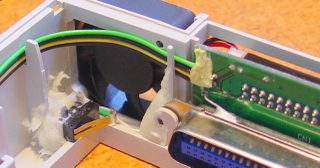

• Mount the microswitch on the caddy on the FAN side, as shown in this picture::

• Cut the same track that is referred to above.  In this picture, the track to cut is the wide track running up at a 45 degree angle to the right, away from the yellow blob of adhesive that secures the green black and yellow wires to the circuit board.


• Run the wires from the microswitch up and then parallel to the green black and yellow wires to the circuit board, then solder them to each side of the cut track.  Make sure that the wires from the microswitch are not located in the air flow path of the fan (you can tie them to the other 4 wires).

Unfortunately I am not able to include a picture of the completed soldered wiring done this second way because I have lost it and I no longer own the PC in which the cradle is now residing.  Sorry about that, but I think that you will understand what to do.

4.  Improving the mating of the caddy and the cradle

On one caddy system of mine I noted that on some occasions I was not getting reliable transfer of data and the hard drive operated slowly and erratically.  I have had a report of a similar problem from at least one other user of caddies.  The problem may be caused by inadequate mating of the big 50-land plug at the outside rear of the caddy with the big 50-land socket at the inside rear of the cradle.  With my problem caddy, it seemed to slip into the cradle with very little insertion force being applied and I became concerned that caddy and cradle contacts were unreliable.

After I fine tuned the caddy's socket in the way described below, my problems vanished and have not recurred in the subsequent six months of frequent use of caddies.

The Laser system has a 50-land Centronics style socket at the rear of the caddy and that mates with a 50-land Centronics style plug at the rear of the cradle.  My preference is for the caddy's socket to mate with the cradle's plug only after a bit of pressure plus a nice "thunk" indicating that the mating has been effected, and all the lands (flat gold-plated springy thingies) in the plug and socket are in firm contact.   If your caddy already has to have such pressure exerted to get the caddy fully inserted, then I'd leave it alone unless you are getting unreliable data transfer.  However, if the caddy slides in with very little resistance, I'd do the following fine tuning.

For the sockets on all my (3) caddies, I have raised the arching of all the lands very slightly, by only about 0.5 mm.  The high-tech instrument I used to do that is a number 9 darning needle carefully inserted under each land in turn.  You can see the increased curvature for the lands to the right of the needle in this picture:

This may sound complicated, but it only takes about 5 minutes to do all 50 lands in the caddy's socket.

If you do the fine tuning, do not lever a land up - simply slide the needle under the land to increase its curvature a tad.  If you lever up the land too much, the pointy end of the land closest to you will pop up out of its bed.  However, if that happens, it is possible to recover the situation:

• Using a small flat-ended screwdriver or something similar, push the end of the land that is popped up back towards the inside of the socket very gently, until it pops back into its bed.

• When the land is back in its bed, it will probably be bent up too far - more than 0.75 mm.  So insert a VERY small needle into the very small rectangular hole in front of the land's bed, and press the bent up part of the land down onto the small needle so that it becomes less arched and has the right amount of elevation (curved about 0.5 mm above the plastic inside face of the socket).

If you do that fine tuning, when you insert the caddy into the cradle, you will find it now meets with more resistance at the point when the caddy is almost fully inserted (all but about 5 mm to go).  The ideal resistance is one that:

• requires you to make the caddy go in the last 5 mm only by pushing firmly with your thumbs on both sides of the caddy,

• but with that pressure, it DOES go in all the way and stays in.

If the caddy is a bit tight, it will slacken over time.  A little bit of WD40 or other lubricant that is suitable for electrical switches will help a caddy that is a tad tight to fit in properly.

If you have not yet mounted the cradle for the caddy into your PC, an alternative approach (and probably the better one) is to raise the lands on both the caddy socket and the cradle plug slightly - say 0.3 mm for both - rather than raising just the lands on the caddy's plug.  However, if the cradle is already mounted in the PC, raising just the lands on the caddy plug seems to be effective.

5. Conclusions

If you get a caddy/cradle set:

• Make sure the airflow induced by the fan/s will be effective.
• Providing that the airflow will be effective, get a set that has a single fan.
• If the fan noise worries you at all, or you are concerned about wear and tear on the fan, consider installing a microswitch.
• If the caddy socket mates too easily with the cradle plug, or if you are getting unreliable data transfer, try raising the lands on the 50-land socket on the outside rear of the caddy.

 I will keep this article updated on my web site, so check that site for the latest version.

Appendix 1 - One way of fixing the microswitch in place

I attached my microswitch using a very stiff mixture of two-part epoxy resin (West Systems epoxy) and a microfibre-silica thickener.  Technical stuff, but those were the things I had on hand.  Instead of this stuff, you can use any 2-part epoxy (e.g. Araldite, Bote Cote) and any thickener.  A spoonful of very fine sifted sawdust is OK as a thickener.  You can ask your friendly chop saw operator at your local hardware shop for a cup or so of sawdust - take it home and sift it, keeping only the very finest particles.  Mix enough fines with 2-part epoxy to make a VERY stiff consistency that will not slump.

Place a bed of thickened epoxy into the cradle and sit the switch on top with the spring lever pointing towards the 50-pin plug.

Put a tad of epoxy/thickener mix in the two holes through the body of the switch.  Stick two shortened round-head nails or short lengths of wire through the holes.  Then lay the switch onto the bed of epoxy/thickener, with the nails or wire pushed into the bed.  Slurp a little epoxy/thickener over the nail heads for good measure.  The nails or wire will guarantee that the switch is kept firmly in place when the epoxy is set.

The position of the switch should be such that when the caddy is fully inserted, the switch will be in the closed position, but the caddy is not prevented from being fully inserted, so that it touches the rear of the cradle.
